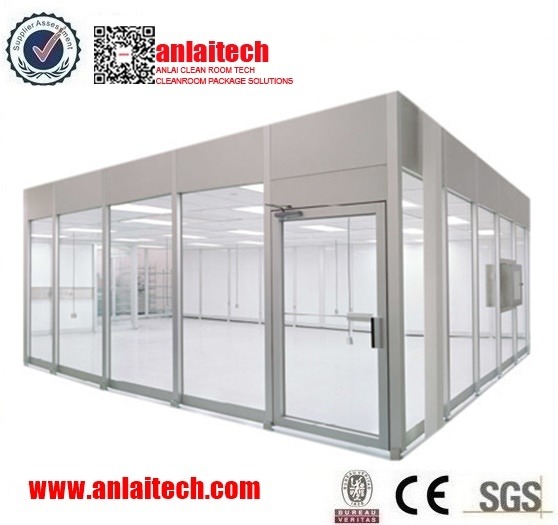

Air Purification In A Small Area Hardwall Dust Free Room Modular Clean Room

1 Set
MOQ
Air Purification In A Small Area Hardwall Dust Free Room Modular Clean Room
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Engineers Available To Service Machinery Overseas
Application: Air Cleaning In A Small Area
Type: Clean Room Booth
Material: Stailess Steel SUS304/201/Q195 /galvanized Sheet
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard export packing (Stretch film+foam+Wooden case)
Supply Ability: 100 Set/Sets per Month
Product Description

Clean Room Modular is a kind of clean room, it can quickly improve the cleanliness of the equipment. Because of its low cost, convenient and flexible asembly, it is widely used in optical, electronic assembly line work, laboratories, assembly area local area purify occasions. The clean booth adopt to FFU generating winds, with industrialize aluminum(stainless steel or painting steel) as it's frame and static-free sticker(or carbon glass), it can make the clean room's cleanliness attain 10-100K.







Configuration:



Parameter

Softwall Clean Booth

Hardwall Clean Booth

Cleanliness

From Class 100 to Class 1000,000

External Dimension

As per requirement

FFU

Dimension

2'X4'

Cabinet Material

Stainless Steel

Power source

110V/60hz/av/dc, 220V/60HZ/AV/DC

HEPA Filter

H14 Hepa filter

Frame Material

Stainless Steel

Wall Material

Anti-static soft PVC wall 106~109Ω

Anti-static acrylic 106~109Ω

Lighting

Lamps

Available in LED and T5

Air condition

As per requirement

Available in constant temperature air conditioner/constant temperature and humidity conditioner

Besides above configuration, we can customized as required.



Technical Paremeters:

Model

Inner dimension

Number of

Air volume(m3/h)

W * D * H (mm)

FFU

ALCS6 * 8

2000 * 3000 * 2400

6

6600

ALCS 8 * 12

2440 * 3660 * 2400

12

13200

ALCS 8 * 16

2450 * 4880 * 2400

16

17600

ALCS 8 * 20

2440 * 6100 * 2400

20

22000

ALCS6 * 8

2000 * 3000 * 2400

2

2200

ALCS 8 * 16

2440 * 4880 * 2400

4

4400

ALCS 12 * 16

3660 * 4880 * 2400

6

6600

ALCS 20 * 24

6100 * 7300 * 2400

12

13200

ALCS6 * 8

2000 * 3000 * 2400

1

1100

ALCS 8 * 16

2440 * 4880 * 2400

2

2200

ALCS 12 * 16

3660 * 4880 * 2400

4

4400

ALCS 20 * 24

6100 * 7300 * 2400

8

8800

ALCS16 * 244880 * 7300 * 240022200
ALCS18 * 305480 * 9150 * 240044400
ALCS20 * 426100 * 12800 * 240066600

Please contact with us for your best clean room solutions.



PRODUCT FEATURES:
Flexible assembly: Compared to the tradtitional clean booth it is easy to installation, cost effective with less investment and quick return, as it cost shorter construction period in the assembling frame by manufacturer.


Selected high quality material: import for the grind curtain and adjustable plastiv cup and universal wheel, convenience for installation and maintance.


Humanized structure: Compared to the clean bench it has the multi-function, which can be used as a unit or combined with another clean equipment together. Even you can assemble it on the production line to change dust-free production.


Flexibility: Less limitation or low requirements for the floor and spot situation, the iner space is enough to use and the frame canbe recycled







 DESIGN INTO PRODUCTION:





DESIGN INTO PRODUCTION:





Following options are available



1. Pass box

 2. Air shower

 3. ULPA filter

4. Sticky mats

5. Barometer

6. Gowning area

7. Pressure different control device

8. Transparent/grid PVC curtain

9. Thermo-static and humid-static air conditioning system.



 PROJECT REFERENCE1:



  FACTORY PREINSTALLED, TESTED

 SAFETY EXPORTED, EASYINSTALLATION



EQUIPPED WITH AIR CONDITIONING SYSTEM, LOW RUNNING COST





PROJECT REFERENCE2:



PROJECT REFERENCE3:







Factory testing (all the sets you ordered):

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.

Factory test include:

--appearance testing

--functional test and visual inspection

--electrical safety tests

--air velocity testing

--noise testing



Advantages:



Own factory with competitive price



Automatic production line.



Nearly 20 years experience in cleanroom industry.



We are an expert in providing customized solutions.



Timely delivery with perfect quality.



Fortune 500 companies’ choice.



Have passed ISO9001.2008 certification.
