Home /Products/Dust Free Clean Room/100 Modular Lab / Lab Clean Room Dust Free Cleanroom Lab Clean Room For Pharmaceuticals Clean Room

100 Modular Lab / Lab Clean Room Dust Free Cleanroom Lab Clean Room For Pharmaceuticals Clean Room

50 Square Meters
MOQ
$35.00(>=50 Square Meters)
Price
100 Modular Lab / Lab Clean Room Dust Free Cleanroom Lab Clean Room For Pharmaceuticals Clean Room
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Hospital, Pharmaceutical Factory, Electronics Factory
Showroom Location: Canada, Turkey, United Kingdom, United States, Pakistan, Mexico, Spain
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 2 Years
Core Components: Other
Warranty: 2 Years
Product Name: Pharmaceutical Clean Room
Cleanliness: 10-10000
Usage: Pharmaceutical/LAB/Hospital
Material: Sandwich Panels+ Aluminum Construction
Panel: Sandwich Panel
Filter: HEPA Cartridge Filter
Application: 100 Lab / Laboratory Clean Room
Function: Purification Filter
Type: Clean Room Booth
After Warranty Service: Video Technical Support, Online Support
Local Service Location: Canada, Turkey, United Kingdom, United States, Pakistan, Mexico, Spain
After-sales Service Provided: Online Support
Basic Infomation
Payment & Shipping Terms
Packaging Details: Export Wooden Packing
Supply Ability: 500 Unit/Units per Month
Product Description
Product Description
Pharmaceutical clean room

Clean Room Turnkey Project .

Clean Room System:
1. Construction work: wall panels, ceiling panels, flush mounted doors and windows, interlocks for doors in the clean room
environment.
2.HVAC system : AHU & Chiller system
3.Clean room Euquipment.
Clean Room (CleanRoom), also known as clean room, clean room or clean room. Refers to an environment with a low level of pollution. The sources of pollution referred to here are dust, airborne microorganisms, suspended particles, and chemical volatile gases. More precisely, a clean room has a controlled pollution level. The pollution level can be determined by the number of particles per cubic meter or the maximum particle size. Low-level clean rooms are usually not disinfected (such as no controlled microorganisms), and are more concerned with airborne dust. Clean rooms are widely used in industries that are particularly sensitive to environmental pollution, such as semiconductor production, biochemical technology, biotechnology, precision machinery, pharmaceuticals, hospitals and other industries. Among them, the semiconductor industry has particular requirements for indoor temperature, humidity, and cleanliness. Strict, so it must be controlled within a certain range of requirements so that it will not affect the manufacturing process. As a production facility, the clean room can occupy a lot of places in the plant.. To give perspective, the ambient air outside in a typical urban environment contains 35,000,000 particles per cubic meter in the size range 0.5um and larger in diameter, corresponding to an 9 cleanroom, while an cleanroom allows no particles in that size range and only 12 particles per cubic meter of 0.3um and smaller.
We kindly needs following information to design your clean room
Recommend for rank of clean workshop of related industry
Rank
1
10
100
1000
10000
100000
300000
Semiconductor Chip Manufacturing
√
√
√
Semiconductor Chip Package
√
√
Electronic Components Production
√
√
Precision Products
√
√
Medical Injections
√
√
Medical Oral Agent
√
√
Aseptic Ward
√
Operation Room
√
√
√
Aseptic Rearing Animals
√
√
√
√
√
Precision Printing
Food Packaging

The structure parts:

1. Panel style: Metal-face polyurethane core board,
Metal-face rockwool core board (widely used),
Metal-face polystyrene core board (without fire proof),
Metal-Face Honeycomb Core Board,
Metal-Face Plastered Core Board (widely used for ceiling),
Metal-face glass-magnesium core board.

Panel thickness: 50mm and 100mm
Panel Height: according to customer request

2. Door shape and window shape and quantities
3. Ornament material: circle 50 degree, 75 degree, alloy aluminum, silver color or painted color.
4. Layout drawings
5. The house structure: steel structure or ferroconcrete
Air conditioner and air fan parts:

1. The technical height(the height between ceiling to girder lower point)
2. Air feeding duct and air sucking duct direction and arrangement
3. The clean grade request, temperature and humidity request, pressure balance request, wind speed request.
4. Air exhaust request and air exhaust quantity request
5. Workers quantity and equipments heat generating amount
6. Air conditioner or air fan brand and style request:
Water cooling or fan cooling?

Equipment parts:
1.The air shower room specification and material request.
2.The pass box specification and material, technical request.
3.Laminar flow specification and request
4.Weight room specification and request

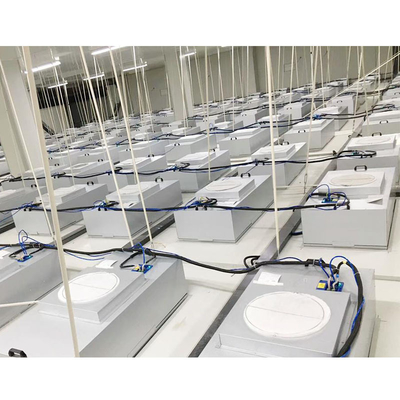

5. FFU specification and request
Details Images

WALL PANELS & FALSE CEILING

The wall panel for the general clean room areas has been designed with a sandwich panel type with insulating soul of polyurethane of 42Kg/m³ ,both side with glass magnesium board and(T:5mm) .Total panel thickness is 50mm and the ceiling panel for the general clean room areas has been designed with a sandwich panel type with insulating soul of polyurethane of 42Kg/m³ ,both side with glass magnesium board and(T:5mm) . and thickness of 50mm,the faces are made of galvanized steel sheets of 0.5mm covered with a primary coating of epoxy and other polyurethane vanish coating of melted in oven. Joints should be sealed with silicon to complete the tightness. The 4 sides of the panel core are reinforced with aluminum profiles which enhances the rigidity of the panel.

DOORS.

The doors are made with the same structure of the panel, steel sandwich panel with polystyrene body. The door has all around a specifically designed aluminum profile to allow the easy cleaning. The profile is especially flush mounted with the body of the door with no steeply joints. The whole body of the door is flush mounted in both sides to the wall panel.

WINDOWS.

Double Side Glass window, flush mounted design
Double glass made of 5mm glasses
Connection Profile: Extruded aluminum profile

HVAC ACCESSORIES IN CLEAN ROOM

In the clean room, all the HVAC related accessories will be perfectly integrated, in order to obtain a complete compliant
environment. The selection, dimensioning and location of all the HVAC related elements to be installed inside the rooms will be part of the detailed engineering paying special attention to several facts, such as proper air flow pattern design, environment blow up, particles removal, no dead areas remaining, proper temperature and humidity distribution, avoid stratification of air in the rooms and so It is important to consider the equipment to be installed inside the clean areas when designing the air flow pattern, in order to avoid particles deposits in critical equipment areas, as well as to blow up with fresh air the heat parts and elements of the installed equipment, avoiding thermal bags inside the area. All the other HVAC elements such as temperature, transmitter devices will be installed preferred in the return ducts to be easily
maintained.
Technical specifications
Clean rank of suspended particles in air of clean room or clean area
ISO rank for air cleanness
Bigger or equal to maximum concentration limits in table (P/m3-air)
American federal 209E rank for cleanness
0.1um
0.2um
0.3um
0.5um
1um
5um
ISOClass1





ISOClass2
100
24
10
4

ISOClass3
1000
237
102
35
8
1
ISOClass4
10000
2370
1020
352
83
10
ISOClass5
100000
23700
10200
3520
832
29
100
ISOClass6
1000000
237000
102000
35200
8320
293
1000
ISOClass7



352000
83200
2930
10000
ISOClass8



3520000
832000
29300
100000
ISOClass9



35200000
8320000
293000
300000
Notes:If any change of data, we will not notify further
