Home /Products/Dust Free Clean Room/Portable Clean Booth Dustproof/Clean Room From Hotels China Factory Removable With FFU Installation Customized Sizes Available

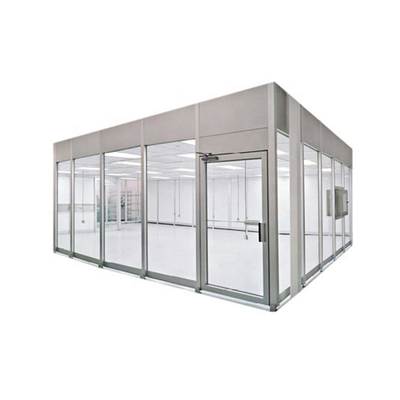

Portable Clean Booth Dustproof/Clean Room From Hotels China Factory Removable With FFU Installation Customized Sizes Available

1.0 Sets
MOQ
Portable Clean Booth Dustproof/Clean Room From Hotels China Factory Removable With FFU Installation Customized Sizes Available
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory
Weight (KG): 300
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2021
Warranty Of Core Components: 1 Year
Core Components: FFU, Booth
Warranty: 1 Year
Product Name:: Clean Booth
Purification Rank:: 100~10000
Indices:: Iron/Stainless Steel
Framework Material:: Cold Rolled Steel/Aluminum/Stainless Steel
Wall And Ceiling Material:: Anti-static PVC Curtain/Half Glass Door
Optional Pre-filter:: Available
Control Box:: Cold Rolled Steel/Stainless Steel
Foot Margin:: Depends On Actual Need
Universal Wheels:: Depends On Actual Need
Customized Designs:: Available
Basic Infomation
Payment & Shipping Terms
Packaging Details: Export Standard Packing
Supply Ability: 20 Set/Sets per Month
Product Description
China Factory Clean/Dust-free Room Portable Clean Booth Removable With FFU Installation Customized Sizes Available
Products Description



Clean Booth
Frameworks: Epoxy powder coated steel / Stainless steel square pipe / Extruded aluminum
Wall material: Anti-static strip curtain / Anti-static grid curtain / Sliding door
Ceiling material: Stainless steel / Cold-rolled steel with powder coated / Anti-static grid curtain / Anti-static acrylic board
Clean class: ISO5/ ISO6 / ISO7
With the Fan filter unit at the top to offer the clean air
With the HEPA filter H13 99.99% for the fan filter unit FFU
With steel with powder coated frame
Or with stainless steel 304 frame
With the control box to control the wind speed, turn on /off for the clean booth/soft wall cleanroom
It can design with the wheels if need

Product information
Clean booth, also known as clean shed or clean workstation. It is quick and easy to create as a simple clean room.
Internal clean class can reach up to 100 -100,000 level. In order to reduce the cost of the structure, KLC has changed the
traditional design concept, and used mini-clean unit integrated design which is similar to the SMIF forms.
Clean booth has a variety of independent clean area, the only difference is not arm connection, but its operation in airtight
clean room. It uses independent air-conditioning and return air system, this advantage of design is flexible, interval easily, low construction costs.
Clean booth can separate between people and equipment or products effectively, also can minimize human interference and pollution, thereby enhancing the rate of qualified products.

Advantages
Economy
compared to the traditional civil style clean room, the cost is greatly reduced
Efficiency
supply clean vertical airflow, maintaining the clean class level of indoor
Convenience
a standard 10'' x 10''clean both just take a few hours to install, and easy disassemble
Flexibility
bracket type can increase the number of FFU in order to raise the clean class level from ten thousand up to one hundred.

Advanced Configuration
Use independent HEPA filter or ULPA filters
FFU blower consist of advanced clean room


Custom Design



CB-1
Configurations
1. Frameworks: powder coated steel
2. Four side: grid curtain
3. Entrance: PVC blade



CB-2
Configurations
1. Frameworks: powder coated steel
2. Four side: PVC blade
3. Entrance: PVC blade



CB-3
Configurations
1. Frameworks: powder coated steel
2. Four side: transparent acrylic glass
3. Entrance: manually open door



CB-4
Configurations
1. Frameworks: anodized aluminum
2. Four side: transparent acrylic glass
3. Entrance: manually open door



CB-5
Configurations
1. Frameworks: stainless steel
2. Four side: transparent acrylic glass
3. Entrance: air shower
4. Accessories: pass box

Product Specification
Model item
Laminar flow Clean Shed
KLC-CS1500
KLC-CS2000
KLC-CS3000
KLC-CS5000
Size(mm)
1500*2000*2400
2000*3000*2400
3000*4000*2400
5000*5000*2400
Material
Framework
Cold rolled steel /Aluminum/Stainless steel
Around
Plexiglass,Soft curtain,Anti-static strip curtain
Clean Class Level
100
1000
10000
100000
HEPA filter
Size(mm)
610*610*69
1220*610*69
1220*610*69
1220*610*69
Efficiency(%)
99.99
99.99
99.99
99.99
Air flow (m3/h)
4000
5040
7560
12000
Pre filter
Size(mm)
Optional
Motor Spec
Power supply
220V/50Hz
220V/50Hz
220V/50Hz
220V/50Hz
Noise(dB)
62
63
62
63


Application Electronic plant, national defense, precision instruments, food processing, pharmacy, chemical, agricultural, biological, other industrial departments and all kinds of scientific laboratory, etc.
