Product Detail

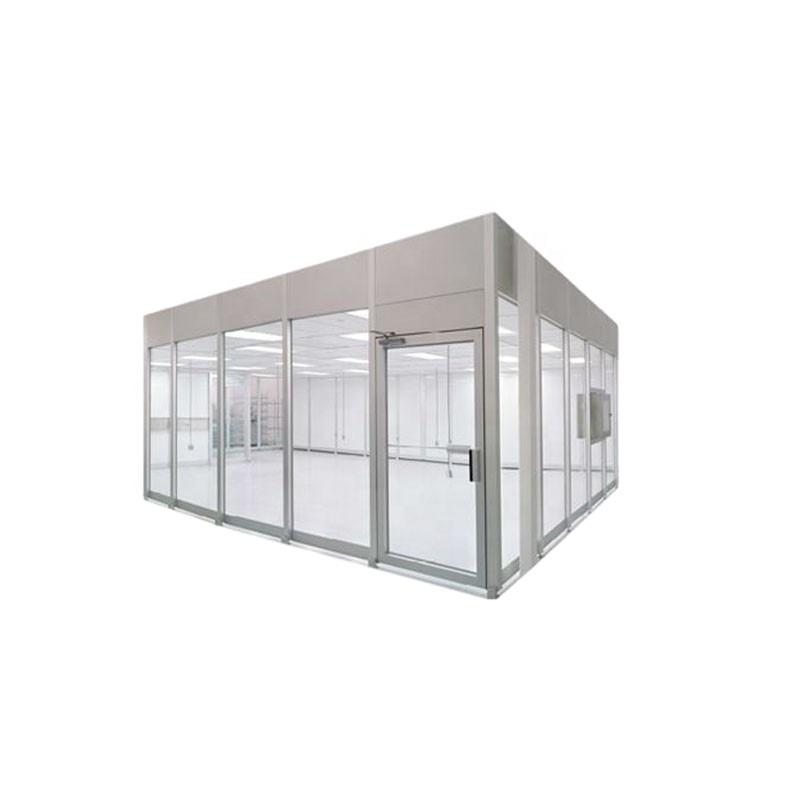

Modular Hardwall Clean Room:
May act according to the customer request design contour The purity achieved ISO3---ISO8
lean-Booth-(ISO3-ISO8)
Characteristics
This-type-is-Simple-Clean-Room,-surrounded-the-around-with-PVC-antistatic-blinds.Class-ISO8
Mail-Characteristics
Low-Price-
According-to-the-user-need-to-move-the-position-
Easy-for-installation-
Specious
Part-with-high-cleanliness
According-to-user-needs-for-different-size-and-style
-
We can make any new model according to clients'requirment.
|
Model |
YN-CS-23B |
YN-CS-34A |
YN-CS-68C |
|
External Dimension (W×D×H)mm |
2100×3100×2590 |
3100×4100×2590 |
6100×8100×2590 |
|
Internal Work Zone (W×D×H)mm |
2000×3000×2240 |
3000×4000×2240 |
6000×8000×2240 |
|
Clean Class Level |
1000Class(ISO6) |
100Class(ISO5) |
10000Class(ISO7) |
|
Air Velocity |
0.3-0.5m/s |
0.3-0.5m/s |
0.3-0.5m/s |
|
Noise |
≤65dB |
≤65dB |
≤65dB |
|
Vibration Half Peak |
≤5um |
≤5um |
≤5um |
|
Light |
40W×2 |
40W×4 |
40W×8 |
|
Power Supply |
220V/50Hz |
220V/50Hz |
220V/50Hz |
|
Material |
Framework: Epoxy powder coated steel/ Stainless steel/Aluminum Wall: Anti-static strip curtain/Soft air curtain/Plexiglas |
||
Customized design is welcome.
Appication:electronic,LAB,pharmacy,medical,baverage,etc.
