Home /Products/Clean Room Booth/Other BIOBASE CHINA partial high clean environment mobile clean booth down flow booth for lab

Other BIOBASE CHINA partial high clean environment mobile clean booth down flow booth for lab

1.0 Units
MOQ
Other BIOBASE CHINA partial high clean environment mobile clean booth down flow booth for lab
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Applicable Industries: Other, Hospital, Lab
Showroom Location: United States, India, UAE
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Other
Warranty: 1 Year
Product Name: Clean Booth(Down Flow Booth)
External Size (W*D*H): 1500*2000*2530mm
Air Velocity: 0.1~0.6m/s, Average 0.45m/s
HEPA Filter: 99.999% Efficiency At 0.3um
Noise: ≤75db
Clean Level: ISO 5 (Class 100), Class A
UV Lamp: 40W*2
Illuminating Lamp: 16W*1
Consumption: 800W
FFU Nos.: 4 Pcs
After Warranty Service: Video Technical Support, Online Support
Local Service Location: United States, India, UAE
After-sales Service Provided: Online Support
Basic Infomation
Payment & Shipping Terms
Packaging Details: The carton wooden cases, etc.
Supply Ability: 1000 Unit/Units per Month
Product Description

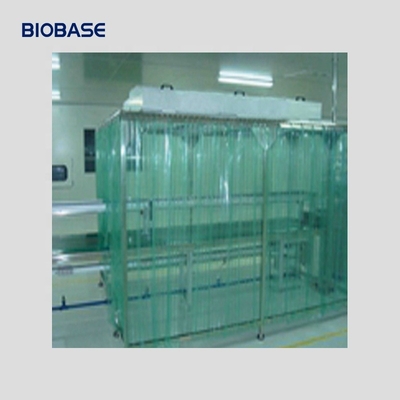

Clean Booth(Down Flow Booth)
Product Introduction

Feature:

Clean booth is a kind of air purifying equipment providing partial high clean environment, it’s the easiest and fastest way to build a simple clean room. Equipped with a lot of clean level and space collocation, it can be designed as request.
Maincharacteristics: simple use, good flexibility, easy installation, short construction time, and movable. It can be installed in part of clean room of general level which requires high cleanliness to save cost.

1. Customized design is welcomed.
2. It can be used singly or combined.
3. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost
and fast effect and can be easily installed.
4. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement
(Universal wheel can be installed).

Model
BKCB-1500
BKCB-2000
BKCB-3000
BKCB-5000
External Size (W*D*H)
1500*2000*2530mm
2000*3000*2530mm
3000*4000*2530mm
5000*5000*2530mm
HEPA Filters
99.999% efficiency at 0.3 um
Consumption
800W
1500W
2800W
5000W
FFU Nos.
4 pcs
6 pcs
12 pcs
25 pcs
Clean Level
ISO 5 (Class 100), Class A
Control System
Microprocessor control system
Rectangular Tube Material
Aluminium alloy
Wall Material
Anti-static dustproof curtain
Blower
Built-in centrifugal blower; speed adjustable
UV Lamp
40W*2
40W*2
40W*3
40W*5
Emission of 253.7nanometers, with UV timer
Illuminating Lamp
16W*1
16W*2
16W*3
16W*5
LED Lamp,Illumination :≥500lux
Air Velocity
0.1~0.6m/s, average 0.45m/s
Noise
≤75db
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight
390Kg
670Kg
1100Kg
2900Kg
Package Size (W*D*H)
2110*930*920mm
2280*660*500mm
3080*980*1280mm
3080*660*550mm
3080*980*1280mm
3080*980*1280mm
4080*660*550mm
4080*980*1280mm
4080*980*1280mm
4080*980*1280mm
1260*660*1280mm
5080*460*500mm
Customized design for clean level, size or material is available
